Environmental Measurement Research Corporation's
Gas Flow Monitoring System

EMRC Introduces A New Line Of Gas Flow Monitors

New Time Share Gas Flow Monitoring

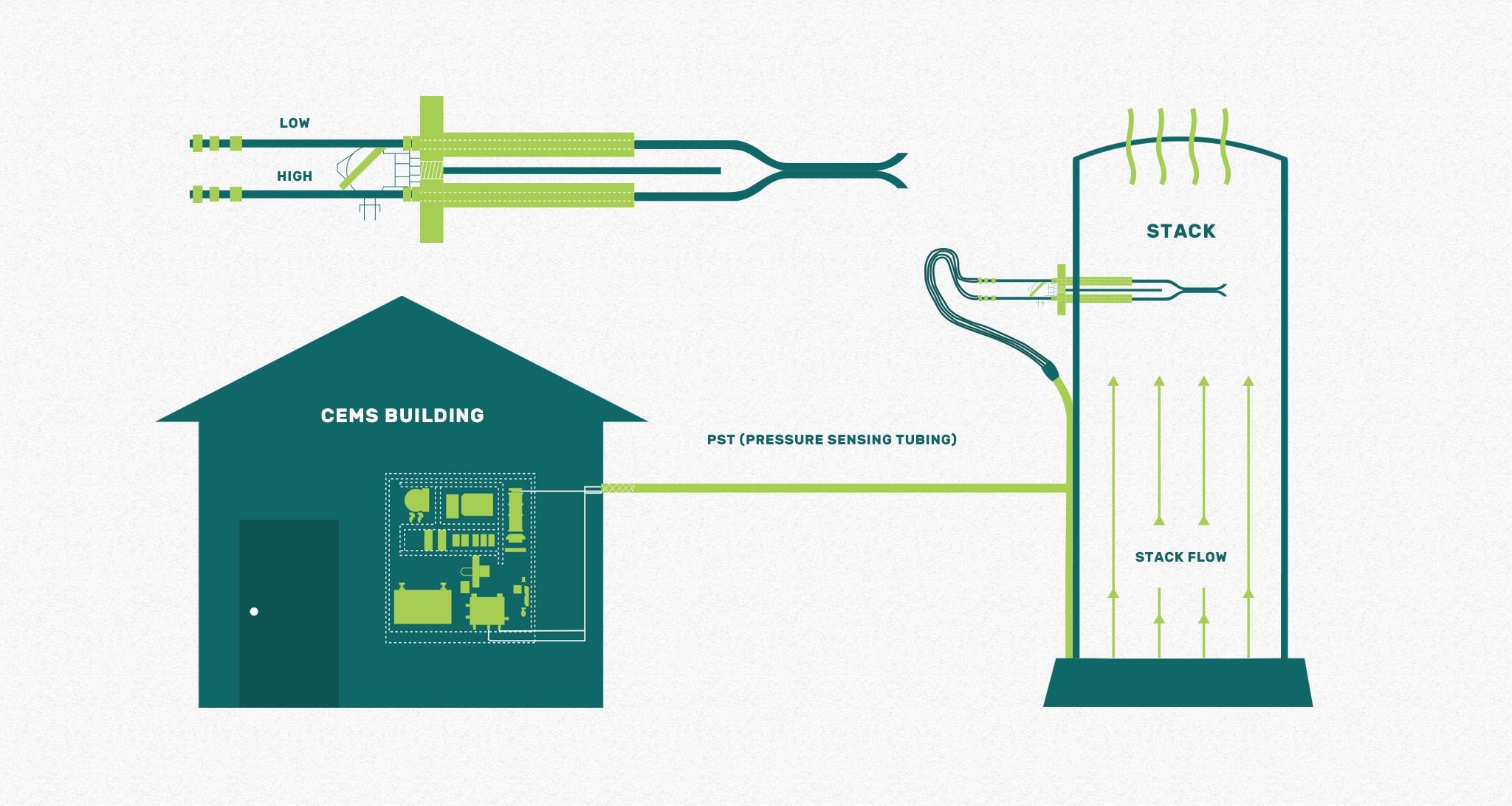

The EMRC Gas Flow Monitoring System utilizes differential pressure technology. It is capable of accurately measuring gas flow from ~5 - 900 ft/sec and temperatures up to ~3,000° F. All EMRC Gas Flow Monitors are custom-designed to match each gas flow stream condition.

The EMRC Gas Flow Monitor includes an in situ flow sensor utilizing a variety of designs and materials (appropriate metallurgy/ceramic, etc.) to fit a large variety of flow measurement applications. Other subsystems including pressure signal conditioning interface, differential pressure transducer and temperature measurement subsystem (Type K thermocouple or RTD) and a primary reference and pressure auto-calibration subsystem (also available for the Type K thermocouple transmitter). The EMRC instrument package is located off-stack allowing for ease of maintenance and control. Off-stack instrumentation is packaged routinely in indoor and/or outdoor cabinetry, although it is preferable to locate instrumentation in a thermally controlled instrument/control room for ease of maintenance and enhanced performance.

The most advantageous aspect of the EMRC design is its simplicity of installation and maintenance. The resultant advantages are:

• +99.99% uptime
• Low installation cost
• Low maintenance cost
• No utilities at the stack or duct (probe can operate in explosion hazard situations)
• Fully automated calibration and purge
• Onboard primary reference manual calibration capability (no need to go back to the factory)
• In situ sensors are designed to meet extremely hostile conditions (corrosion, erosion high temperatures and moisture, etc.)

Click here to find out more about the advantages of the EMRC Gas Flow Monitor.
